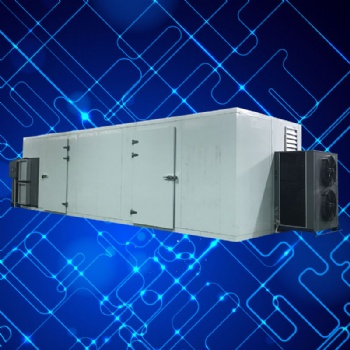

DT1200HD

Model No.: DT1200HD
Power supply: 380V-3PH,50/60HZ
Power input: 32.8KW
Rated current: 66.0A
Heating capacity: 84.0KW
Cooling capacity: 64.0KW
Dehumidify capacity: 100.0L/H
Refrigerant: R134A/16.0KG
Hot air flow: 70800-38400m³/H
Dryer size: 2089mm*1356mm*1590mm
Drying chamber size: 11860mm*3230mm*2200mm
Drying capacity:
Warranty: 1 Years

Get A Quote Get An Sample

Product DisplaySpecificationDownload

Various Drying Energy Economy Comparison Table
Heating type	Electric heater	Coal Boiler	Oil-fired Boiler	Gas Boiler	Biomass Stove	Common Heat Pump dryer	Drytech Latest Heat Pump Dryer
Remove 1kg of water required heat energy	According to information provided by the relevant authority of the document, the average 1kg of water to remove heat energy required for 1.35 kw/kg,namely 4860 kj/kg
Fuel type	Electric	Coal	Diesel	Gas	Biomass fuels	Electric	Electric
Heat value	3600 kj/kg	23027 kj/kg	33494 kj/kg	36006 kj/kg	17459 kj/kg	3600 kj/kg	3600 kj/kg
Thermal efficiency	95%	30%	85%	85%	90%	350%	400%
Effective thermal value	3420 kj/kg	6906 kj/kg	28469 kj/kg	30605 kj/kg	15713 kj/kg	12600 kj/kg	14400 kj/kg
Fuel price	0.1$ /kwh	0.1$ /kg	1.2$ /L	0.8$ /m3	0.2$ /kg	0.1$ /kwh	0.1$ /kwh
Fuel consumption	1.42kwh	0.7kg	0.17L	0.159m3	0.375kg	0.386kwh	0.337kwh
Fuel consumption ($)	0.142	0.007	0.204	0.127	0.075	0.039	0.034
Labor management, warehousing costs	Higher	High	High	High	Low	Low	Low
Safety performance	Unsafe	Unsafe	Unsafe	Unsafe	Safe	Safe	Safe
Environmental pollution	None	Very serious	More serious	More serious	Light pollution	None	None
Life of equipment	5-8 years	6-9 years	6-9 years	6-9 years	8-12 years	10-15 years	10-15 years

Drytech Heat Pump Dryer Features:

1. New design idea--Three times waste heat recovery;
2. Adopt heat regenerators to dehumidify;
3. Adopt touch screen controllers and dry/wet bulb to control temperature and humidity, operation drying machine easily and more accurate;
4. adopt duct-type drying method, it with shorter drying time and well-distributed hot air, drying time shorter 30% than old models;
5. during drying, the material does not craze,does not distortions, nondiscolouring, never degenerate, non-oxidize, drying completely, with good Rehydration, keep nutrient content.

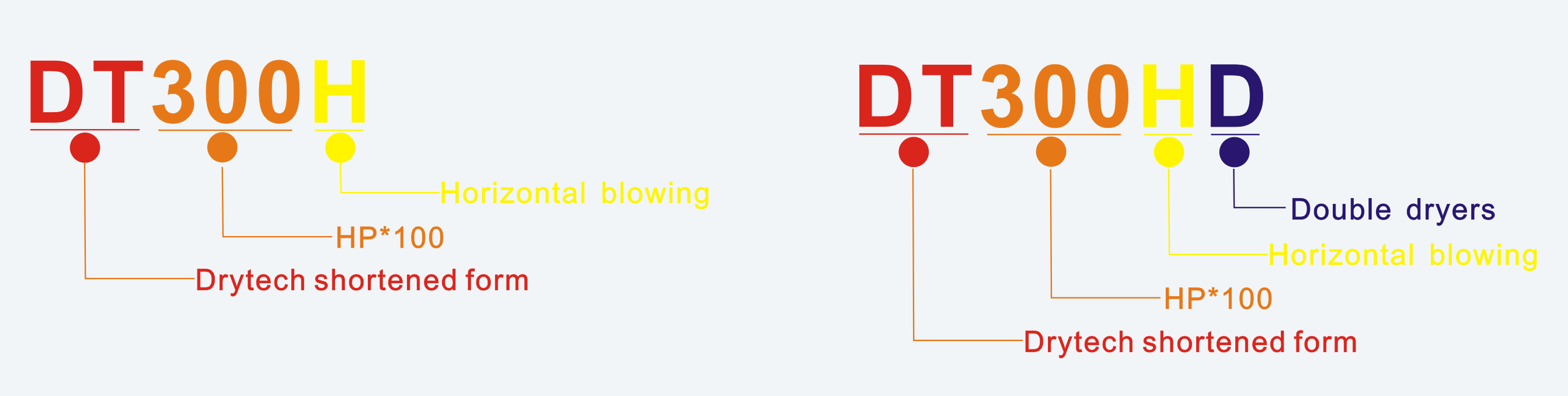

Technique parameters

Model	Power supply	Power input(KW)	Rated current	Refrigerant (R134/KG)	Heating capacity(KW)	Cooling capacity(KW)	Dehumidify capacity(L/H)	Hot air flow(m³/H)	Dryer size(mm)	Drying chamber size(mm)
DT300H	220V,1PH,50/60HZ	5.5	25.0A	2.5	10.5	7.8	12.0	23600-12800	16508561280	316020702200
DT300H	380V,3PH,50/60HZ	5.5	11.0 A	2.5	10.5	7.8	12.0	23600-12800	16508561280	316020702200
DT500H	380V,3PH,50/60HZ	6.9	14.0 A	3.8	16.0	12.5	20.0	23600-12800	16508561280	316020702200
DT600H		9.5	19.0 A	4.0	21.0	18.0	25.0	47200-25600	165010561280	570021702200
DT1200H		19.4	39.0 A	8.0	42.0	32.0	50.0	70800-38400	208913561590	581032302200
DT300HD		11.0	22.0 A	5.0	21.0	15.6	24.0	47200-25600	16508561280	751020702200
DT500HD		13.8	28.0 A	7.6	32.0	25.0	40.0	47200-25600	16508561280	751020702200
DT600HD		18.4	37.0 A	8.0	42.0	36.0	50.0	47200-25600	165010561280	1053021702200
DT1200HD		32.8	66.0 A	16.0	84.0	64.0	100.0	70800-38400	208913561590	1075032302200
